Dosing device for fine dosing AJD

Description

AJD

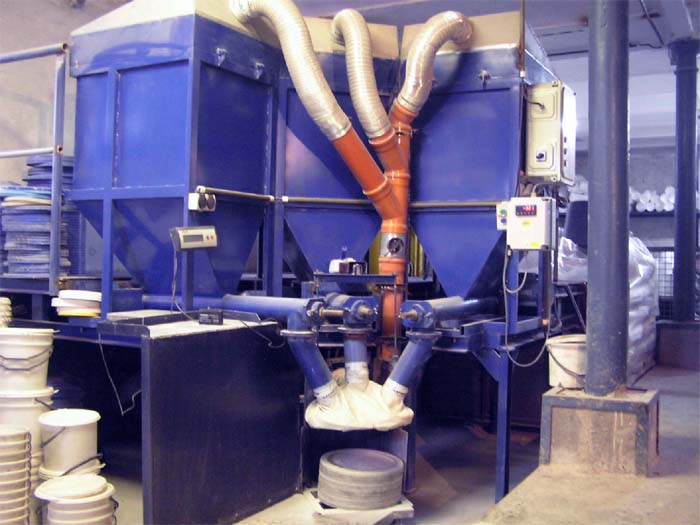

The system consists of several násypek (by number of navažovaných components) installed on the structure. Each of the násypek is equipped with a dosing Auger special design.
The whole system is controlled by an electronic unit, to allow setting of the weight of the benefits of the individual components.

The use of the

The system is designed for weighing various powder materials into portable containers (eg. the weighting of the mixtures of additives for tmelící material, a mixture of colored pigments, etc.) .

The benefits of

Compact design, high reliability, low maintenance, low dust levels.

The parameters of the

The volume of the násypek for the material
approx. 250 l
Power supply
3 x 400 V, 50 Hz 370 W
Cover of el. parts of the
IP 44
Range of working temperatures -10 ° c ÷ + 40 ° c
Max. dose
30 kg
Error weighting
Max 50 g



To download a prospectus in Adobe PDF format, click Davkovaci device for the changer by davkovani AJD
