Description

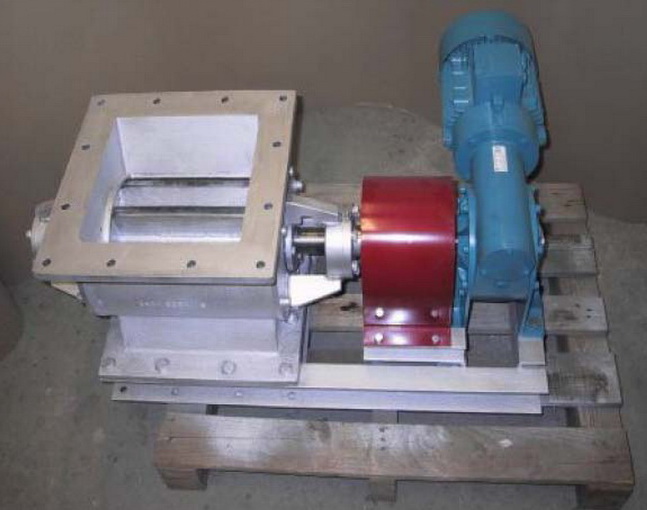

The device is used to feed material supply from silo, or as a cap or a separator členv systems pneumatic transport. Feeder consists of a body in which the rotor is stored with the shoulder blades, sealing lids and bearings. The body of the feeder is equipped with two removable covers for cleaning, inspection, and replacement of the rotor sealing. Drive the feeder is provided with a flanged electric motor either ballast resistor for the purposes of weighing or volumetric dosage, or worm (or frontal) gearbox with engine in the case of uniform administration and the locking function. Feeder and the Variator are stored on a common mounting frame, front transmission is directly on the body of the feeder.
The use of the
Dosing of abrasive powder and granular materials or materials of a similar nature, the solution for challenging operating conditions with increased service life.
The parameters of the
| AKP6 | The AKP 12 | The AKP'S 30 | |||
| The total weight of the | kg | 190 | 190 | 450 | |
| Speed range | Rev/min | 5.6-33.6 | 5.6-33.6 | 5.6-33.6 | |
| Max. grain size material | mm | 2 | 2 | 2 | |
| Max. the temperature of the material | ° C | 80 | 80 | 80 | |
| Power feeders | m3/h | 1.3-8.1 | 2.4-14.1 | 8.7-52. | |
| Range of working temperatures | ° C | -20 ÷ + 50 | -20 ÷ + 50 | -20 ÷ + 50 * | |
| Cover of el. part of the | IP 54 | IP 54 | IP 54 | ||
| Basic speed | Manual ** | Manual ** | Manual ** | ||
| Used electric motor | 4ap 80-4 | 4ap 80-4 | 4ap 90-L4 | ||
| Power of electric motor | KW | 0.75 | 0.75 | 1.5 | |
| Noise level max. | DB | 65 | 65 | 65 |
| The AKP 60 | AKP 120 | |||
| The total weight of the | kg | 795 | 1130 | |
| Speed range | Rev/min | 5.6-33.6 | 5.6-33.6 | |
| Max. grain size material | mm | 2 | 4 | |
| Max. the temperature of the material | ° C | 80 | 80 | |
| Power feeders | m3/h | 15.6-96 | 3.6-201,6 | |
| Range of working temperatures | ° C | -20 ÷ + 50 * | -20 ÷ 50 | |
| Cover of el. part of the | IP 54 | IP 54 | ||
| Basic speed | Manual ** | Manual ** | ||
| Used electric motor | 4ap 100-L4 | 4ap 100-L4 | ||
| Power of electric motor | KW | 3.0 | 4.0 | |
| Noise level max. | DB | 65 | 65 |
* If necessary the possibility of delivery in the version to 210 ° c.
* For execution with a ballast resistor.
Dimensional schema
Basic dimensions
| Type/Dimensions | And | (B) | (C) | (D) | (E) | (F) | (G) | (H) | (I) | (J) |
|---|---|---|---|---|---|---|---|---|---|---|
| The AKP 12 | 250 | 270 | 360 | 825 | 320 | 80 | 400 | 288 | 50 | 1185 |
| The AKP'S 30 | 400 | 410 | 500 | 1158 | 500 | 100 | 600 | 320 | 127 | 1605 |
| The AKP 60 | 500 | 520 | 630 | 1350 | 630 | 120 | 750 | 362 | 182 | 1794 |
To download a prospectus in Adobe PDF format, click AKP_xx_Komorovy turniketovy podavac v2
